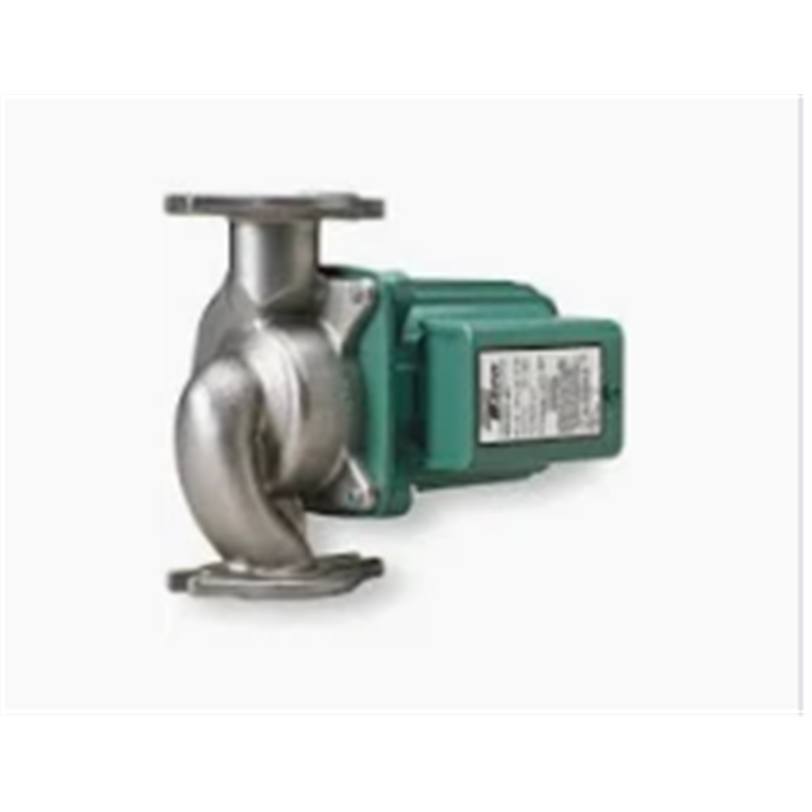

Stainless Steel 1/8 HP Cartridge Circulator Pump
TACO 009-SF-5 STAINLESS STEEL PUMP
Hydronic Circulating Pumps
}
Stainless Steel 1/8 HP Cartridge Circulator Pump
3155546
MFG #: 009-SF-5
Product ID:3155546
Famous Supply
- Amperage Rating: 1.40
- Dimensions: 7 L x 4-1/8 W x 6-3/8 H in
- Frequency Rating: 60
- Impeller Type: Non-metallic
- Maximum Head: 35 ft
- Maximum Pressure: 150 psi
- Motor Speed: 3250 rpm
- Mounting Type: Flange
- Power Rating: 1/8 hp
- Series: 009
- Temperature Rating: 40 to 230 deg f
- Type: Single Speed, Stainless
- Flow Rate: 10 gpm
- Voltage Rating: 115
- Phase: 1
The high velocity series Taco® 009 cartridge circulator is designed for quiet, efficient operation in higher-head/lower-flow applications for Hydronic heating, Radiant in-floor/panel heating, solar heating, heat recovery and domestic water recirculation systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Available in cast iron or bronze construction.
- Features
- Standards & Approvals
- Application
| Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems |
| The stainless steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems |
| The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator |
| Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs |
| Standard high capacity output compact design |
| Quiet, efficient operation |
| Direct drive-low power consumption |
| Unique replaceable cartridge design-field serviceable |
| Self lubricating |
| No mechanical seal |
| Unmatched reliability-maintenance free |
| Universal flange to flange dimensions |
| Cast iron or bronze construction |
| Cast iron or bronze casing |
| Aluminum stator housing |
| Stainless steel cartridge |
| Non metallic impeller |
| Ceramic shaft |
| Carbon bearings |
| EPDM O-ring and gaskets |
| cULus Listed |
| Residential and Light Commercial Higher-Head/Lowerflow Water Circulating Applications |
