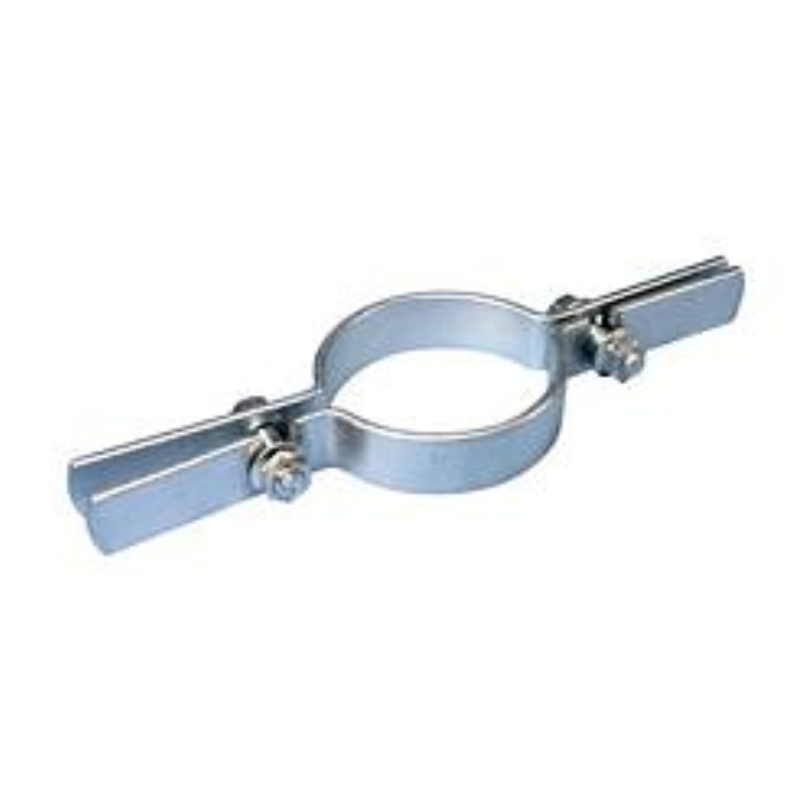

nVent CADDY 5100200EG EZ Riser Clamp, 2 in Pipe, 255 lb Static Load, Steel, Electro-Galvanized, Import
ERICO 5100200EG CADDY EZ RISER #510 Riser Clamp 2" EG
Pipe Riser Clamps
}
nVent CADDY 5100200EG EZ Riser Clamp, 2 in Pipe, 255 lb Static Load, Steel, Electro-Galvanized, Import
3210185
Product ID:3210185
Famous Supply
- Dimensions: 1-3/16 in H x 10-1/4 in W
- Outside Diameter: 2-3/8 in
- Series: 510
- Pipe Size: 2 in
- Load Capacity: 255 lb Static
- Material: Steel
- Finish: Electro-Galvanized
- Domestic/Import: Import
The new 510 riser clamp from nVent ERICO is the latest innovation designed to simplify installations when suspending vertical steel pipe risers. The 510 riser clamp has slotted holes to allow easy installation without requiring hardware removal, meaning no more lost time looking for dropped nuts or bolts. This innovative riser clamp installs in a fraction of the time of a standard riser clamp. The special serrated flange head bolts eliminate the need for wrenches on both the bolt and nut. Just hold the bolt in place with your finger and tighten the nut from the front side - where it's most accessible. The electro zinc plated finish on the 510 riser clamp provides superior corrosion protection.
- Features
- Standards & Approvals
- Application
| Recommended for suspending vertical steel pipe risers |
| Slotted holes make assembly easy, eliminating loose hardware |
| Serrated flange head bolts eliminate need for wrenches on both bolt and nut |
| ARRA Compliant |
| Buy American Act Compliant |
| UL 203 |
| cULus Listed |
| Federal Specification WW-H-171 Type 8 |
| MSS SP-58 Type 8 |
| ANSI/MSS-SP-69 |
| Fire Protection, Seismic, Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications |
