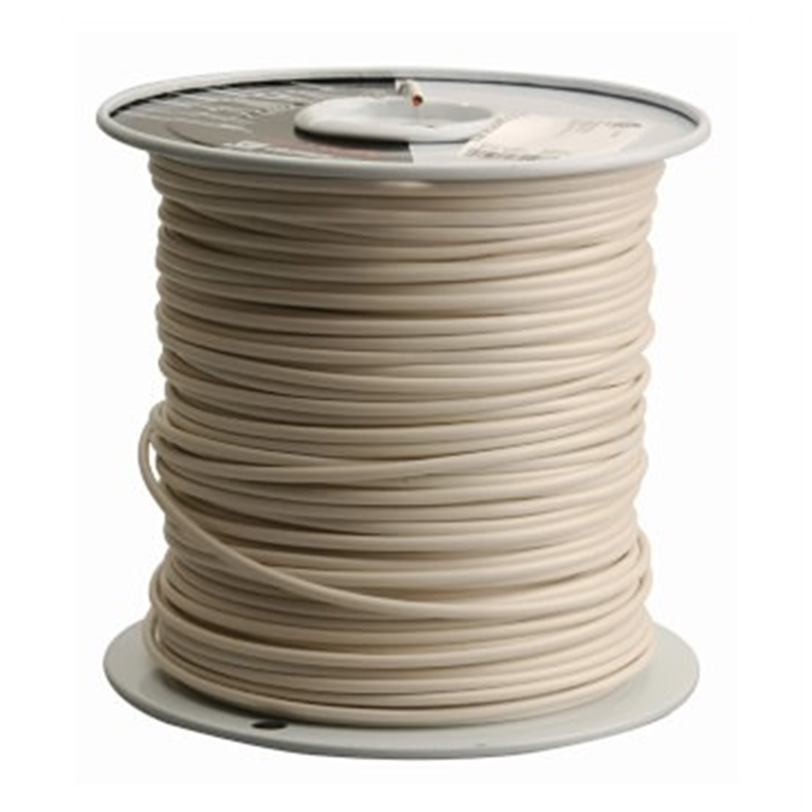

18/2 BARON® Baroplen™ Type CL2P Plenum Thermostat Cable, 300v, 500 ft
BARON 55502-05-23 18-02 500 FT BAROPLENUM PLENUM CABLE REEL (4RL/BX) SOUTHWIRE 56489201
Thermostat Wire
}
Brand:
18/2 BARON® Baroplen™ Type CL2P Plenum Thermostat Cable, 300v, 500 ft
1881284
MFG #: 55502-05-23
Product ID:1881284
Famous Supply
- Insulation Material: PVC
- Jacket Color: Beige
- Jacket Material: PVC
- Resistance: 6.32 ohm
- Series: Baroplen
- Temperature Rating: -20 to 75 deg f
- Type: Type CL2P
- Voltage Rating: 300 VAC
- Number of Conductors: 2
- Conductor Size: 18 awg
- Conductor Type: Solid
- Length: 500 ft
Some installations require that thermostat wire be installed adjacent to the HVAC ducts. This creates a challenging environment for electrical wiring. Baroplen™ wires are constructed with high performance insulation and jackets rated for use in these harsh environments.
- Features
- Standards & Approvals
- Application
| Smooth jacket eliminates snagging and tearing |
| PVC jacket, polypropylene insulation ensures excellent strip ability |
| Low smoke PVC jacket and insulation material |
| This cable consists of two bare copper insulated conductors with an overall jacket |
| 17 lbs/1m ft nominal approximate cable weight |
| 51 pF/ft nominal capacitance between conductors at 1 kHz |
| 6.32 Ohm/1000 ft nominal DC resistance per conductor at 20 deg C |
| C(ETL)us CMP/CL2P |
| Type CMP/FT6 |
| NEC Article 725 and 800 |
| UL 13 and 444 |
| For Class 2 power limited circuit cable, communications used in plenum thermostat control applications |
